Description

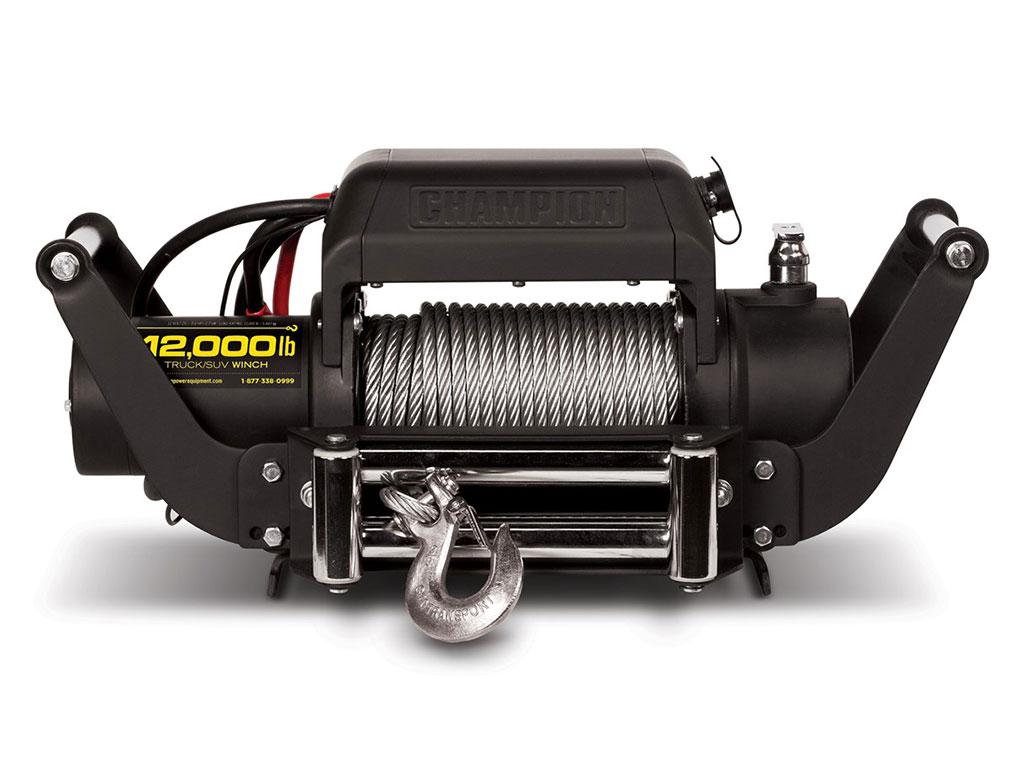

The Champion 12000 EWX is the latest addition to the winch range available from Winch Solutions. Heavy duty sealed contactors and Stainless steel fairleads and fittings ensure its protected against the elements. Powerful high torque 6hp series wound motor combined with full steel four stage planetary gearing ensure maximum performance.
Rated Pull Line 12000lb (5443kg)
6hp /4.2kw or 3.6hp /2.5kw Series Wound Motor
Gear Reduction 230:1
Drum Size 63mm x 228mm
Overall Dimensions ( LxWxH ) 560mm x 155mm x 220mm
Mounting Pattern 254mm x 114.3mm
